NCS-110CU

NCS 5D

Delegate Microphone Unit for Novo Conference System

Category:
Description

Description

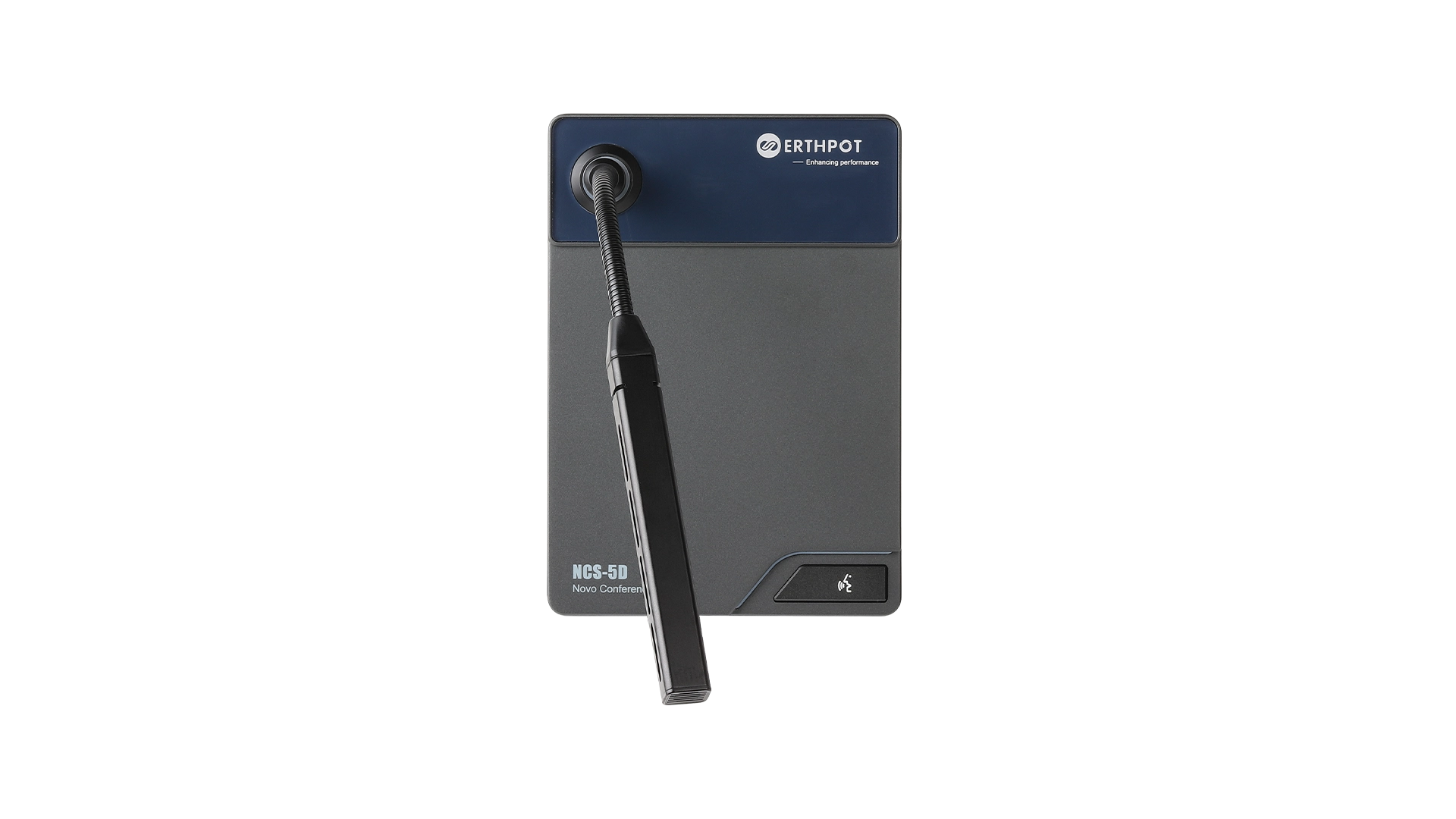

The NCS-5D is a desktop base discussion microphone unit designed as a delegate microphone for Novo Conference System. The microphone unit is engineered in high-quality aluminum alloy die cast housing. The delegate microphone connects to the NCS-110 central control unit via network category 5 cable. The unit includes a shotgun Gooseneck microphone with a cardioid unidirectional pickup capsule. The microphone comes with an illuminating ring at the bottom which indicates the active status. The delegate unit has a mute button to control its integrated microphone.

Key Features

Key Features

  • Integrated Gooseneck microphone with cardioid pickup capsule which provides clear and full sound quality, high sensitivity, and a good long-distance pick-up effect.
  • Speaking status indicator: red when mute, green when speaking.
  • Convenient loop through cabling via standard cat5 category.
  • NCS-5C chairman unit has the priority to override all delegate units.
  • Aluminum finished metallic die-cast body.
Technical Specifications

Technical Specifications

Polar pattern: Cardioid Condenser
Frequency response: 50Hz-20KHz
Sensitivity: -20dBV (+/-3dB) (0db=1Vpa, f=1Khz)
Maximum input sound pressure level: 11OdB (THD < 5%, f=1KHz)
Signal to noise ratio (A-weighted): > IOOdBA (THD<1%, f=1 Khz)
Distortion: <0.1%
Power supply: 24V DC (supplied by the controller)
Power consumption: 0.72W
Unit interface: RJ45 network input
Weight: about 670g
Dimension (mm): 147 (L) Xl 15 (W) x218(H)
Downloads

Downloads

NCS 5D Datasheet

Key Features
  • Integrated Gooseneck microphone with cardioid pickup capsule which provides clear and full sound quality, high sensitivity, and a good long-distance pick-up effect.
  • Speaking status indicator: red when mute, green when speaking.
  • Convenient loop through cabling via standard cat5 category.
  • NCS-5C chairman unit has the priority to override all delegate units.
  • Aluminum finished metallic die-cast body.
Technical Specifications
Polar pattern: Cardioid Condenser
Frequency response: 50Hz-20KHz
Sensitivity: -20dBV (+/-3dB) (0db=1Vpa, f=1Khz)
Maximum input sound pressure level: 11OdB (THD < 5%, f=1KHz)
Signal to noise ratio (A-weighted): > IOOdBA (THD<1%, f=1 Khz)
Distortion: <0.1%
Power supply: 24V DC (supplied by the controller)
Power consumption: 0.72W
Unit interface: RJ45 network input
Weight: about 670g
Dimension (mm): 147 (L) Xl 15 (W) x218(H)
