Keyer 1616

Description

The KEYER 1616 is an audio processing and control system that uses an advanced TI456MHz Dual-Core Chip for DSP giving you an unprecedented opportunity to solve the most complex problems of signal routing & processing. Keyer 1616 makes mixing, signal routing, vocal processing, and room optimisation, all these tasks, are very simple and quite straightforward.

The Keyer Series DSP helps you to get the most optimised audio performance for presentation and conferencing applications in wherever place you want whether it be in boardrooms, courtrooms, or a restro-bar.

Key Features

DSP audio processing, built-in automatic mixing console, Ducker dodger, optional feedback elimination, echo elimination, noise elimination module.
Input Per Channel: Preampliﬁer, signal generator, expander, compressor, 10-band parametric equalization.
Output Per channel: 31-band graphic equalizer, delay, crossover, limiter.
Built-in bi-directional USB Audio Interface for soft codec conferencing solution supports recording & play.
Support for scene preset function.
Automatic power failure protection memory function.
Full-featured matrix mixing function.
User deﬁnable GUI windows-based control software to manage & conﬁgure the DSP unit.
Built-in automatic camera tracking function.

Technical Specifications

Sampling Rate	48KHz
Phantom Power	48V
Frequency Response	20 – 20KHz，±0.2dB
Maximum Input/Output Level	18dBu
Output Impedance (Balanced)	100Ω
Equivalent Input Noise EIN	≤-125dBU
Channel Isolation @1kHz	100dB
THD+N	<0.004% @4dBu
Digital/Analog Dynamic Range	120dB
Background Noise	-90dBU
Analog/Digital Dynamic Range	114dB
Input Impedance (Balanced)	20kΩ
Input Gain Amplification range	24 to -27dB, (3dB Step,17 in total)
Operating Power Supply	AC110/220V,50Hz/60Hz
Enclosure / Chassis Material	Pressed Steel (powder coated)
Chassis Dimensions (H×W×D)	45×482×258 mm, Size 19” 1RU
Product Weight	2.9 kg
Included Accessories	IEC 1.2 MTR Power Cord
Environmental conditions	-10 to +40 °C
Compliance	CE & RoHS

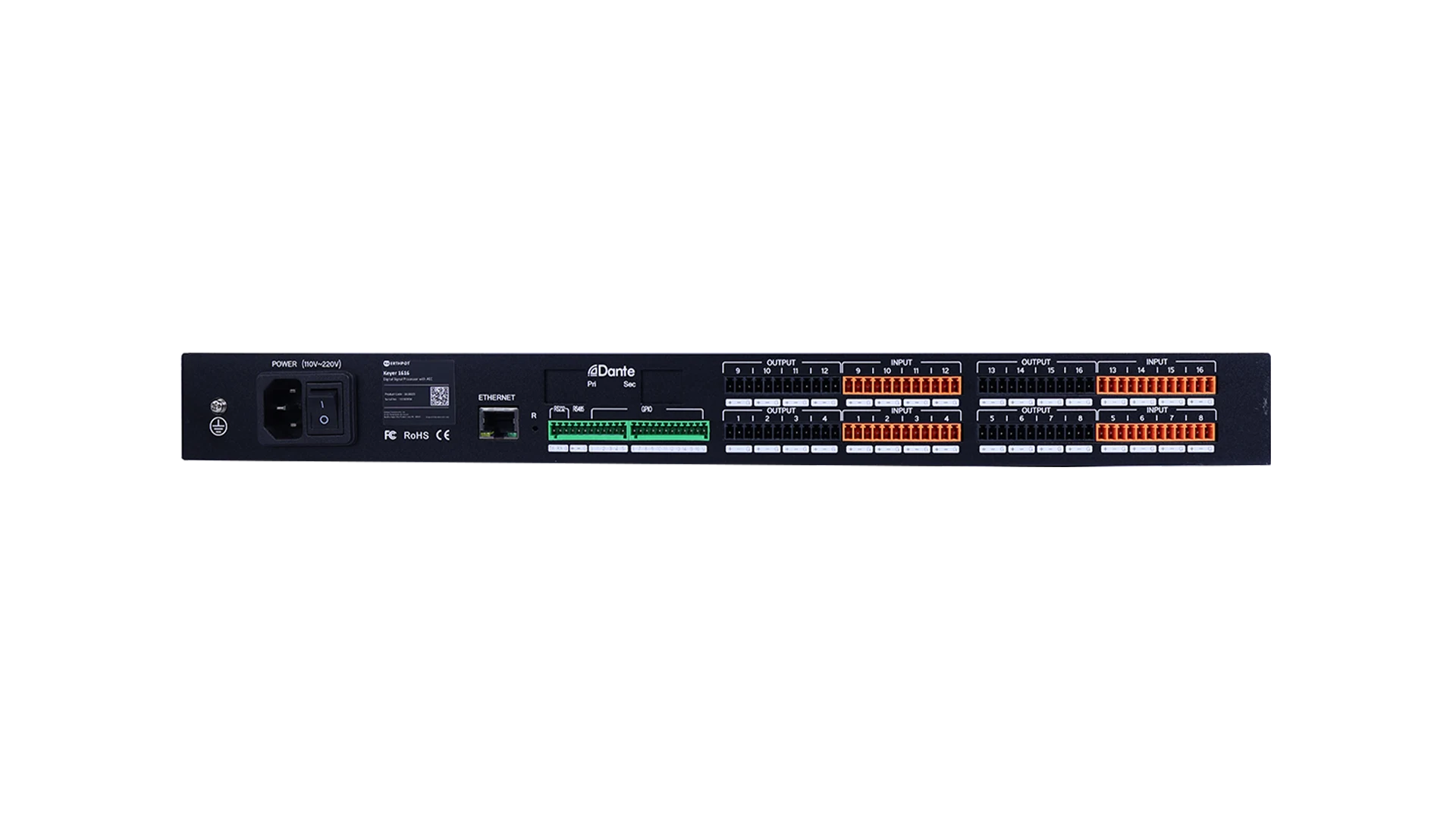

Port Configuration

Analog Input Channel	16
Analog Output Channel	16
Dante Input Channel	N/A
Dante output Channel	N/A
Ethernet control port	1
Dante Interface (Primary)	N/A
Dante Interface (Secondary)	N/A
RS232	1
RS485	1
GPIO	8 (Freely Configurable i/o)

Downloads

Keyer-1616 Datasheet

Keyer Quick Start Guide

Keyer 1616 User Manual

Keyer 1616 Mechanical Drawing
